Solar energy is no longer just a futuristic concept; it’s a proven solution that homeowners around the world are using to cut energy costs and reduce their carbon footprint. If you’re thinking about installing solar panels on your roof, you probably have a lot of questions. In this comprehensive guide, we’ll walk you through the process of installation, system sizing, cost considerations, and practical tips to get the most out of your solar investment.
How Do You Install Solar Panels on a Roof?

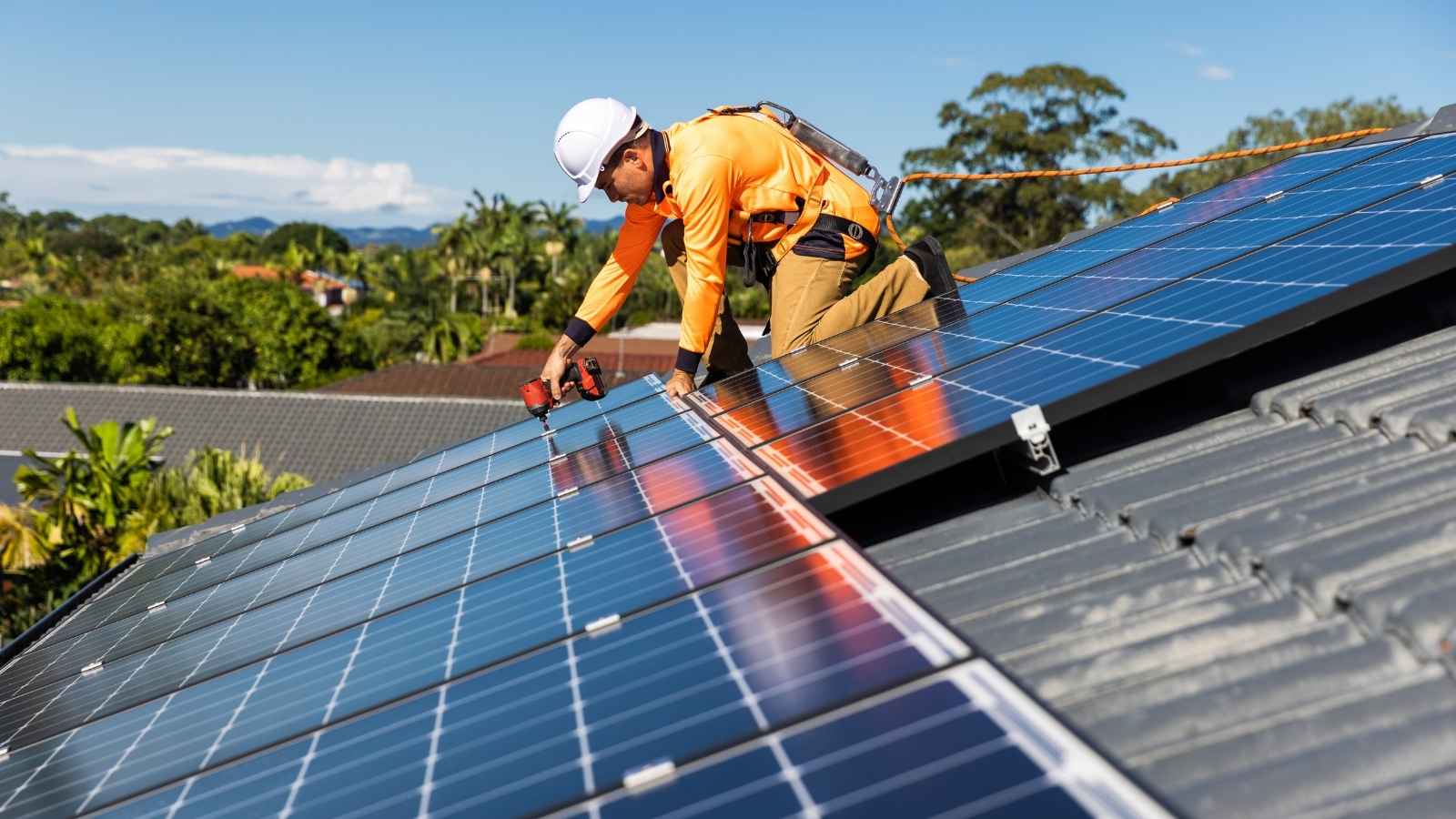

Installing solar panels involves a structured process to ensure efficiency, safety, and compliance with local regulations. First, a professional will assess your roof’s structure, orientation, and shading patterns. South-facing roofs in the northern hemisphere generally provide the best exposure, but east-west arrangements can also be effective.
After assessment, the installer designs the system layout, choosing the right panel type, inverter, and mounting method. Mounting brackets are securely attached to the roof beams, followed by racking rails that hold the panels. Once panels are mounted, they’re wired to the inverter, which converts the DC electricity to usable AC power. The final step is connecting the system to your home’s main electrical panel and scheduling an inspection from your local authority or utility provider.
For a complete official guide, see the U.S. Department of Energy’s solar installation page.
What Are the Steps of Solar Panels Installation?
A solar installation is not just about putting panels on your roof; it’s a carefully planned process. The main steps include:
- Site Evaluation: A technician checks roof health, sun exposure, and space availability.
- System Design: The number of panels, inverter type, and wiring design are chosen based on your energy usage.
- Permitting and Incentives: Many regions require permits. This is also the time to apply for tax credits and rebates.

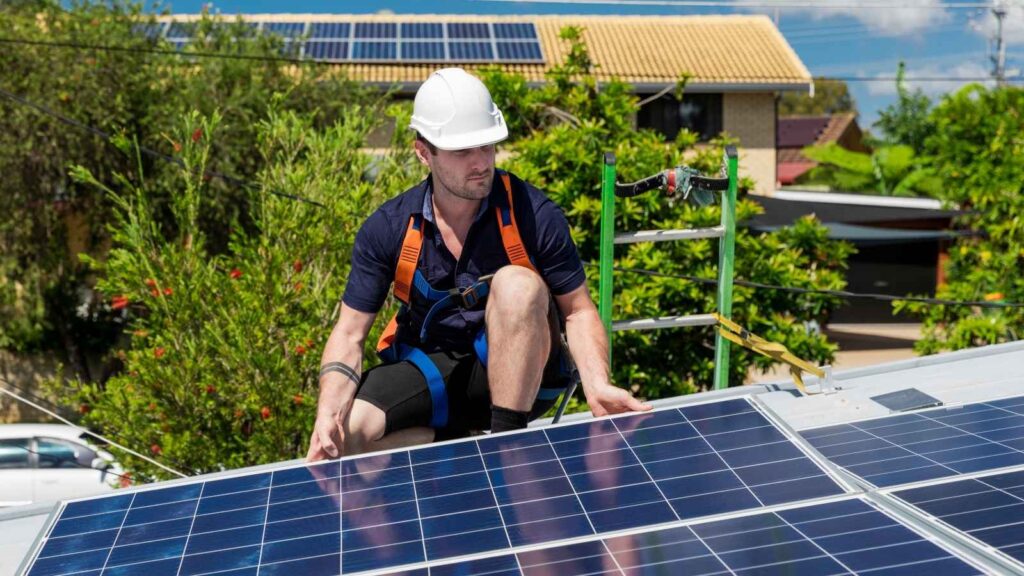

- Installation: Mounting hardware, panels, and electrical wiring are installed according to code.
- Inspection and Activation: A final inspection ensures safety and compliance before you switch on your system.
Each step is crucial for long-term performance and reliability.
Industry standards for each installation step are outlined by the Solar Energy Industries Association
What Is the 120 Rule for Solar Panels?
The 120% rule comes from the National Electrical Code (NEC). It states that the sum of the ampacity of the breakers in a panelboard should not exceed 120% of the panel’s busbar rating. For example, if your main panel is rated at 200 amps, you can backfeed up to 40 amps from solar. This rule prevents overheating and ensures that your solar system works safely with your home’s existing electrical infrastructure.
Learn more about electrical safety from NREL’s PV basics guide.
How Do You Calculate How Many Solar Panels You Will Need?
Start by reviewing your electricity bills to determine average monthly consumption in kilowatt-hours (kWh). Divide this by the monthly output of a single panel in your area. For example, if you use 800 kWh monthly and a 400W panel generates 40 kWh per month, you’ll need around 20 panels. Factors like roof tilt, local weather, and shading may require adjustments. Many installers provide free system sizing tools or consultations to refine these numbers.

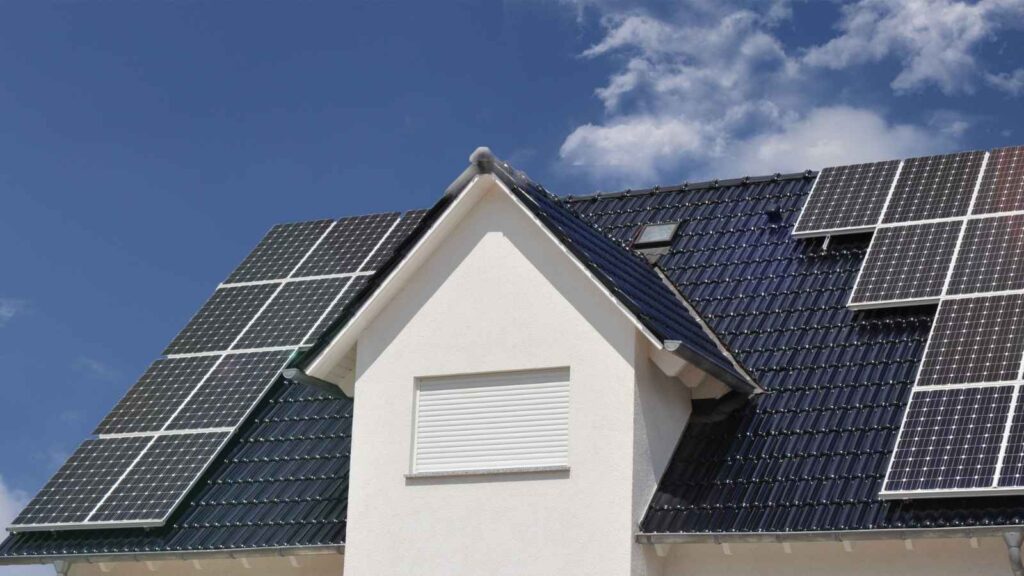

How Many Solar Panels Do You Need on a Roof?
The number depends on your goals. A small 3 kW system might require 8 to 10 panels, ideal for a low-energy household. A larger 7 kW system might use 18 to 20 panels, enough for a bigger family with higher consumption or an electric vehicle.
Before installation, ensure your roof has enough unobstructed space and can handle the additional weight. A qualified installer can provide a roof load calculation and recommend layout adjustments if needed.
What Is the Gap Between Solar Panels on a Roof?
Installers usually maintain a 1–3 inch gap between panels. This space promotes airflow, which prevents overheating and improves efficiency, as solar panels perform better at cooler temperatures. Proper spacing also allows for thermal expansion and simplifies maintenance. Overcrowding panels can lead to reduced output and increased risk of damage.
Mounting Solar Panels on Roof Without Drilling
Worried about roof damage? Mounting without drilling is possible, especially on flat or metal roofs. Ballasted systems use heavy blocks to secure panels without penetrating the surface. On standing-seam metal roofs, special clamps attach directly to seams, avoiding holes. These methods preserve your roof’s integrity but require precise engineering to withstand wind and weather conditions.
Solar Panel Installation Cost
In 2025, the average installed cost of solar in many regions ranges from $2.50 to $3.50 per watt. That means a 5 kW system could cost between $12,500 and $17,500 before incentives. Larger systems cost more upfront but often yield better long-term savings due to economies of scale.
Always research available incentives like federal tax credits, local rebates, and net metering programs. These can reduce upfront costs significantly and improve your return on investment.
How Much Do 400 Watt Solar Panels Cost?
Individual 400W panels often retail for $200 to $300 depending on brand, efficiency, and warranty. Premium panels with higher efficiency ratings can cost more but may require fewer panels overall, saving space and reducing installation complexity. Always consider total system cost rather than panel price alone.

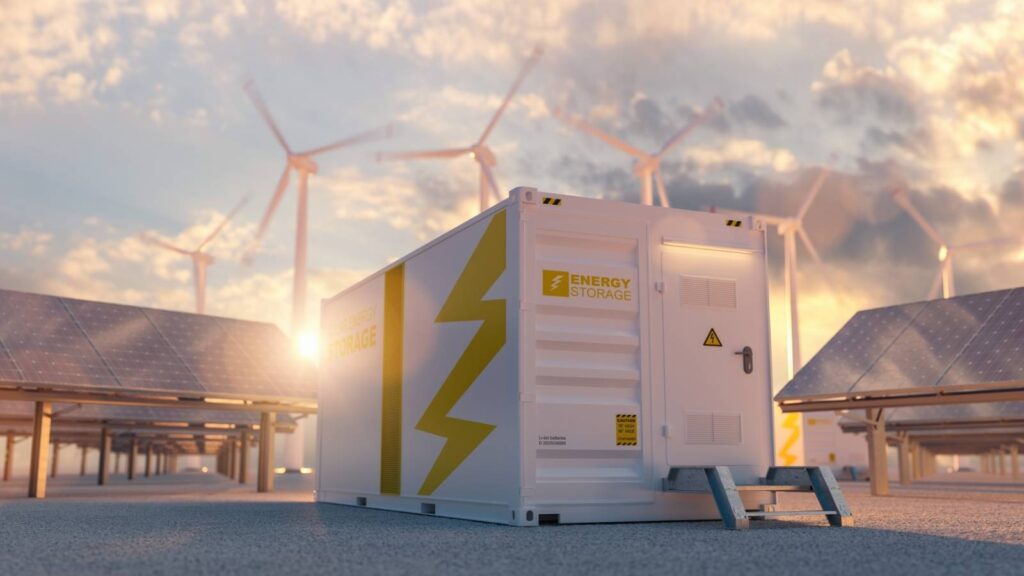

Is It Worth Getting a Battery With Solar Panels?
Adding battery storage transforms your solar system into a more versatile energy solution. Batteries store excess daytime production for use at night or during outages. In areas with time-of-use electricity rates, batteries help you use stored power when grid prices are highest. Although batteries add cost, they can provide energy security and greater independence.
Lithium-ion batteries are currently the most popular, but new technologies like solid-state batteries are emerging, promising longer lifespans and higher capacities.
IRENA also provides insights on battery storage and solar systems, see IRENA’s solar page.
Is 3 kW Enough to Run a House?
A 3 kW solar system can produce around 10–12 kWh per day in sunny climates. For a small, energy-efficient home without heavy appliances, this can cover a significant portion of energy needs. However, if you run air conditioning, electric heating, or charge an EV, you may need a larger system.
Is 7 kW Enough to Run a House?
A 7 kW system generates about 25–30 kWh per day. This capacity suits medium to large households with average appliance use and even allows for additional loads like pool pumps or EV chargers. If you’re planning future expansions, starting with a 7 kW system offers flexibility.
What Is the Difference Between a 3kW and 5kW Solar System?
The difference lies in power output and cost. A 3 kW system is smaller and more affordable, ideal for limited budgets or small homes. A 5 kW system, however, generates significantly more electricity, leading to greater savings over time. Your choice should align with your monthly energy consumption and roof space.
Is a 2000W Solar Panel Enough?
A 2000W (2 kW) system is on the small side. It can power an off-grid cabin or serve as supplemental energy for specific appliances, but it’s not enough for a standard household. Most homeowners start with at least 3 kW for meaningful savings.
Do Solar Panels Generate DC or AC?
Solar panels naturally generate Direct Current (DC) electricity. Because homes and the power grid operate on Alternating Current (AC), an inverter is used to convert DC into AC. This conversion happens almost instantly, allowing you to power household appliances seamlessly.
Do Solar Panels Work on Cloudy Days?
Yes, solar panels still generate electricity on cloudy days, though output may drop to 10–25% of peak capacity. High-efficiency panels and optimal installation angles can maximize production even in regions with frequent cloud cover. Investing in battery storage further smooths out daily fluctuations.
Final Thoughts
Solar panel installation is a smart investment for long-term savings and sustainability. By understanding installation steps, system sizing, costs, and advanced options like batteries or mounting methods, you can design a system that suits your unique needs. Whether you choose a 3 kW entry-level setup or a full-scale 7 kW array, solar energy is a future-proof choice that pays dividends for years to come.
